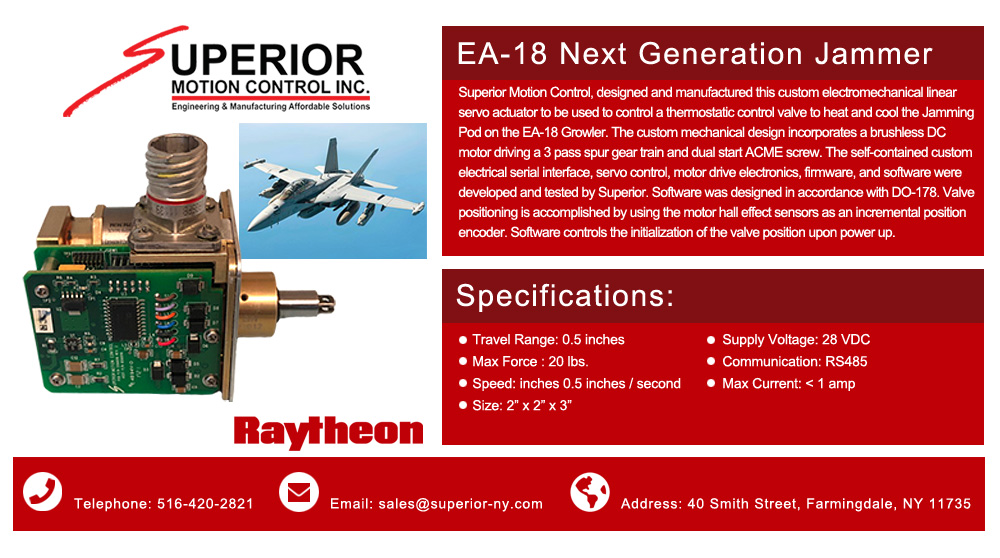

EA-18 Next Generation Jammer
Click Here:
Superior Motion Control, designed and manufactured this custom electromechanical linear servo actuator to be used to control a thermostatic control valve to heat and cool the Jamming Pod on the EA-18 Growler.
The custom mechanical design incorporates a brushless DC motor driving a 3 pass spur gear train and dual start ACME screw.
The self-contained custom electrical serial interface, servo control, motor drive electronics, firmware, and software were developed and tested by Superior.
Software was designed in accordance with DO-178. Valve positioning is accomplished by using the motor hall effect sensors as an incremental position encoder.
Software controls the initialization of the valve position upon power up.
Specifications:
The custom mechanical design incorporates a brushless DC motor driving a 3 pass spur gear train and dual start ACME screw.
The self-contained custom electrical serial interface, servo control, motor drive electronics, firmware, and software were developed and tested by Superior.
Software was designed in accordance with DO-178. Valve positioning is accomplished by using the motor hall effect sensors as an incremental position encoder.
Software controls the initialization of the valve position upon power up.
Specifications:
- Travel Range: 0.5 inches
- Max Force : 20 lbs.
- Speed: inches 0.5 inches / second
- Size: 2” x 2” x 3”
- Supply Voltage: 28VDC
- Communication: RS485
- Max Current: < 1 amp

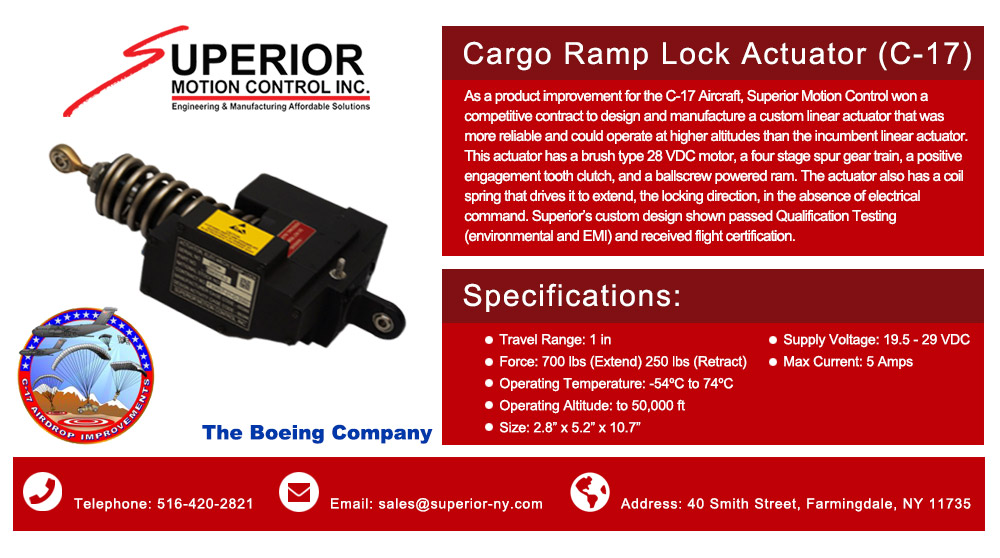

Cargo Ramp Lock Actuator (C-17)
Click Here:
As a product improvement for the C-17 Aircraft, Superior Motion Control won a competitive contract to design and manufacture a custom linear actuator that was more reliable and could operate at higher altitudes than the incumbent linear actuator.
This actuator has a brush type 28 VDC motor, a four stage spur gear train, a positive engagement tooth clutch, and a ballscrew powered ram.
The actuator also has a coil spring that drives it to extend, the locking direction, in the absence of electrical command.
Superior’s custom design shown passed Qualification Testing (environmental and EMI) and received flight certification.
Specifications:
This actuator has a brush type 28 VDC motor, a four stage spur gear train, a positive engagement tooth clutch, and a ballscrew powered ram.
The actuator also has a coil spring that drives it to extend, the locking direction, in the absence of electrical command.
Superior’s custom design shown passed Qualification Testing (environmental and EMI) and received flight certification.
Specifications:
- Travel Range: 1 in
- Force: 700 lbs (Extend) 250 lbs (Retract)
- Operating Temperature: -54ºC to 74ºC
- Operating Altitude: to 50,000 ft
- Size: 2.8” x 5.2” x 10.7”
- Supply Voltage: 19.5 - 29 VDC
- Max Current: 5 Amps

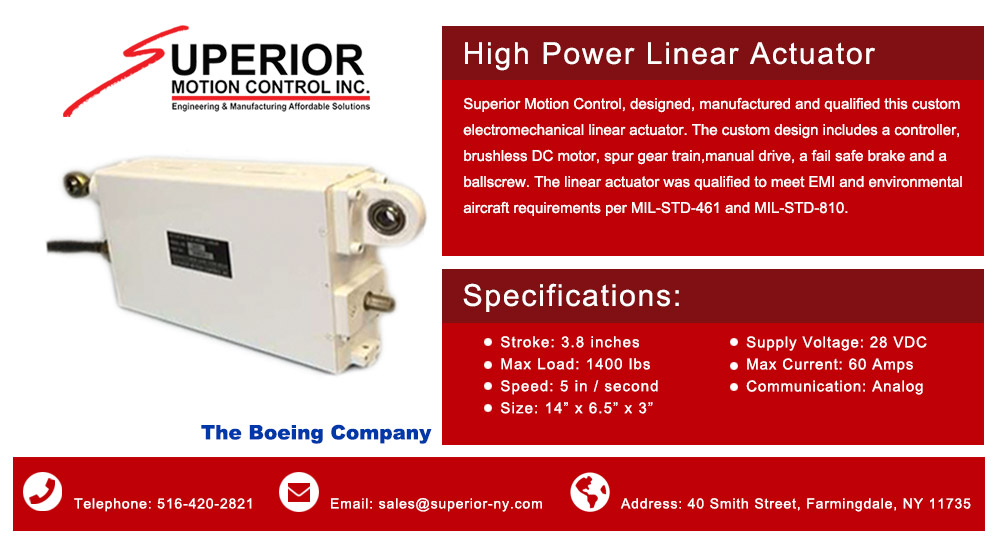

High Power Linear Actuator
Click Here:
Superior Motion Control, designed, manufactured and qualified this custom electromechanical linear actuator.
The custom design includes a controller, brushless DC motor, spur gear train, manual drive, a fail safe brake and a ballscrew.
The linear actuator was qualified to meet EMI and environmental aircraft requirements per MIL-STD-461 and MIL-STD-810.
Specifications:
The custom design includes a controller, brushless DC motor, spur gear train, manual drive, a fail safe brake and a ballscrew.
The linear actuator was qualified to meet EMI and environmental aircraft requirements per MIL-STD-461 and MIL-STD-810.
Specifications:
- Stroke: 3.8 inches
- Max Load: 1400 lbs
- Speed: 5 in / second
- Size: 14” x 6.5” x 3”
- Supply Voltage: 28 VDC
- Max Current: 60 Amps
- Communication: Analog

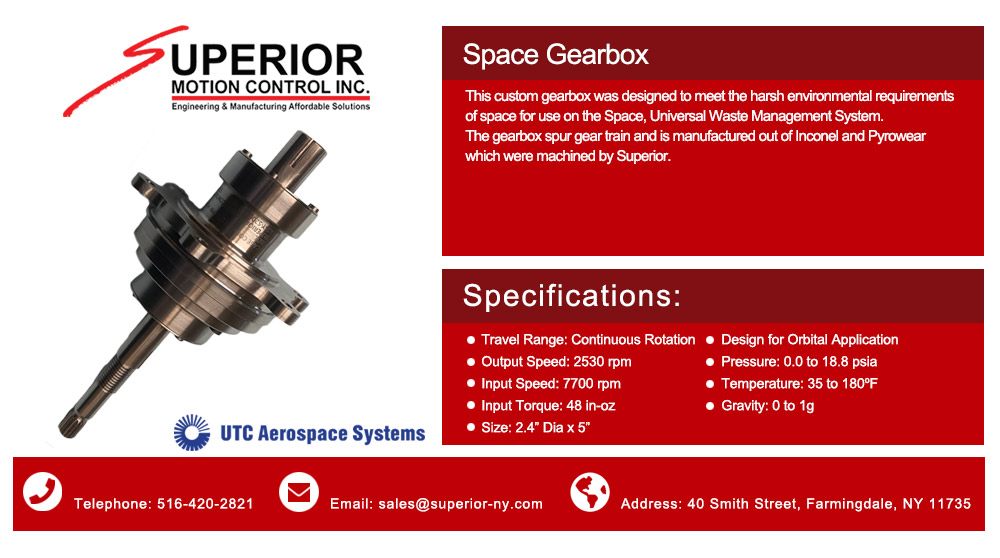

Space Gearbox
Click Here:
This custom gearbox was designed to meet the harsh environmental requirements of space for use on the Space, Universal Waste Management System.
The gearbox spur gear train and is manufactured out of Inconel and Pyrowear which were machined by Superior.
Specifications:
The gearbox spur gear train and is manufactured out of Inconel and Pyrowear which were machined by Superior.
Specifications:
- Travel Range: Continuous Rotation
- Output Speed: 2530 rpm
- Input Speed: 7700 rpm
- Input Torque: 48 in-oz
- Size: 2.4” Dia x 5”
- Design for Orbital Application
- Pressure: 0.0 to 18.8 psia
- Temperature: 35 to 180ºF
- Gravity: 0 to 1g

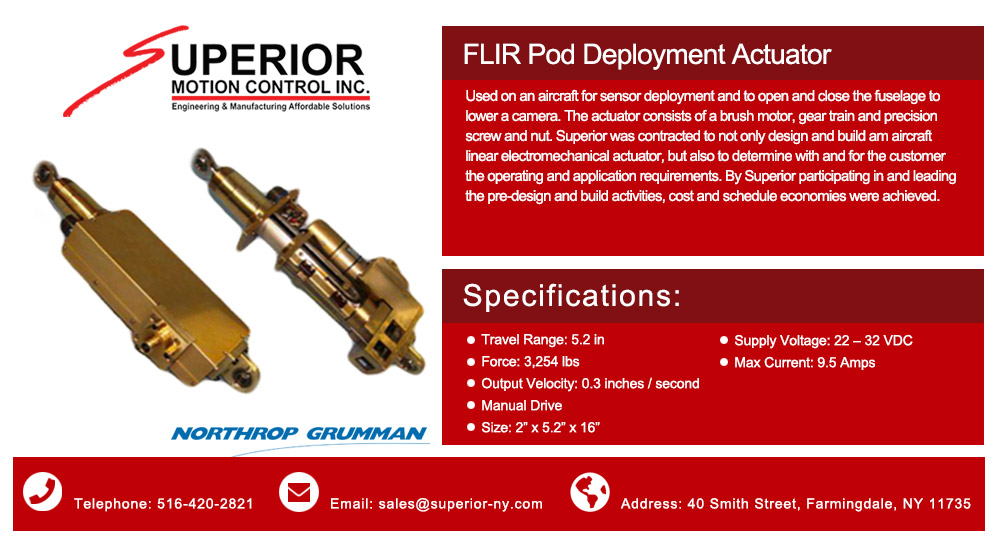

FLIR Pod Deployment Actuator
Click Here:
Used on an aircraft for sensor deployment and to open and close the fuselage to lower a camera. The actuator consists of a brush motor, gear train and precision screw and nut.
Superior was contracted to not only design and build am aircraft linear electromechanical actuator, but also to determine with and for the customer the operating and application requirements.
By Superior participating in and leading the pre-design and build activities, cost and schedule economies were achieved.
Specifications:
Superior was contracted to not only design and build am aircraft linear electromechanical actuator, but also to determine with and for the customer the operating and application requirements.
By Superior participating in and leading the pre-design and build activities, cost and schedule economies were achieved.
Specifications:
- Travel Range: 5.2 in
- Force: 3,254 lbs
- Output Velocity: 0.3 inches / second
- Manual Drive
- Size: 2” x 5.2” x 16”
- Supply Voltage: 22 – 32 VDC
- Max Current: 9.5 Amps

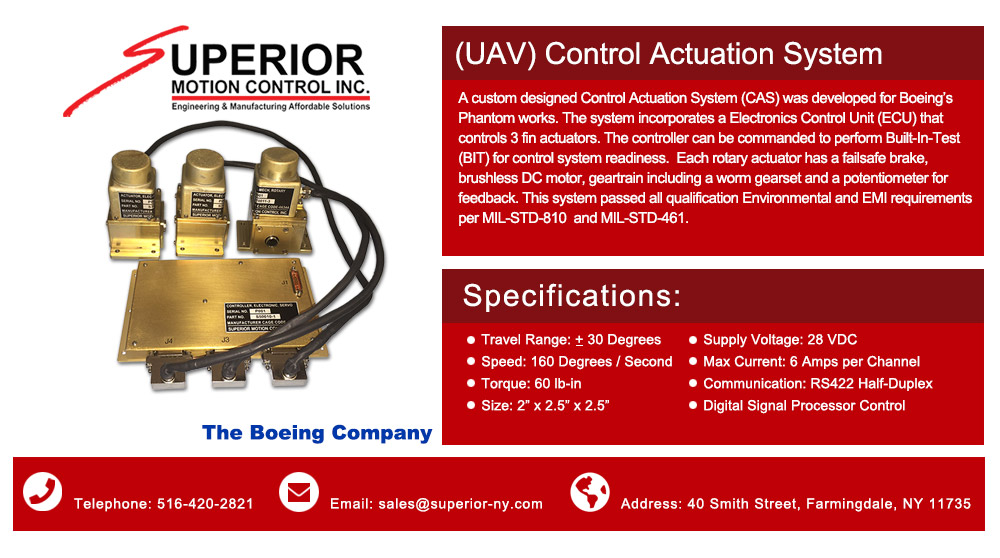

(UAV) Control Actuation System
Click Here:
A custom designed Control Actuation System (CAS) was developed for Boeing’s Phantom works.
The system incorporates a Electronics Control Unit (ECU) that controls 3 fin actuators.
The controller can be commanded to perform Built-In-Test (BIT) for control system readiness.
Each rotary actuator has a failsafe brake, brushless DC motor, geartrain including a worm gearset and a potentiometer for feedback.
This system passed all qualification Environmental and EMI requirements per MIL-STD-810 and MIL-STD-461.
This is integral to the MK-57 Vertical Launch System (VLS).
Specifications:
The system incorporates a Electronics Control Unit (ECU) that controls 3 fin actuators.
The controller can be commanded to perform Built-In-Test (BIT) for control system readiness.
Each rotary actuator has a failsafe brake, brushless DC motor, geartrain including a worm gearset and a potentiometer for feedback.
This system passed all qualification Environmental and EMI requirements per MIL-STD-810 and MIL-STD-461.
This is integral to the MK-57 Vertical Launch System (VLS).
Specifications:
- Travel Range: + 30 Degrees
- Speed: 160 Degrees / Second
- Torque: 60 lb-in
- Size: 2” x 2.5” x 2.5”
- Supply Voltage: 28 VDC
- Max Current: 6 Amps per Channel
- Communication: RS422 Half-Duplex
- Digital Signal Processor Control

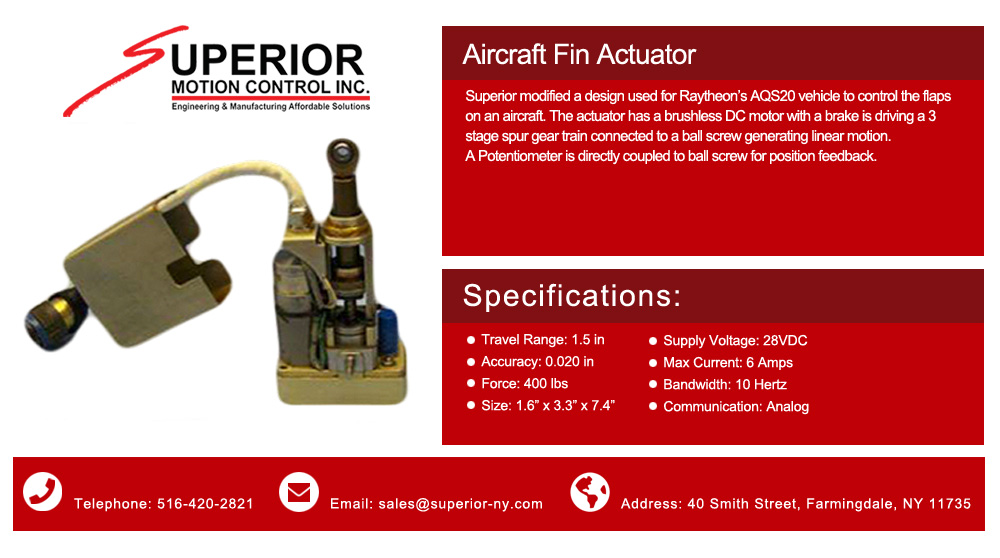

Aircraft Fin Actuator
Click Here:
Superior modified a design used for Raytheon’s AQS20 vehicle to control the flaps on an aircraft. The actuator has a brushless DC motor with a brake is driving a 3 stage spur gear train connected to a ball screw generating linear motion.
A Potentiometer is directly coupled to ball screw for position feedback.
Specifications:
A Potentiometer is directly coupled to ball screw for position feedback.
Specifications:
- Travel Range: 1.5 in
- Accuracy: 0.020 in
- Force: 400 lbs
- Size: 1.6” x 3.3” x 7.4”
- Supply Voltage: 28VDC
- Max Current: 6 Amps
- Bandwidth: 10 Hertz
- Communication: Analog

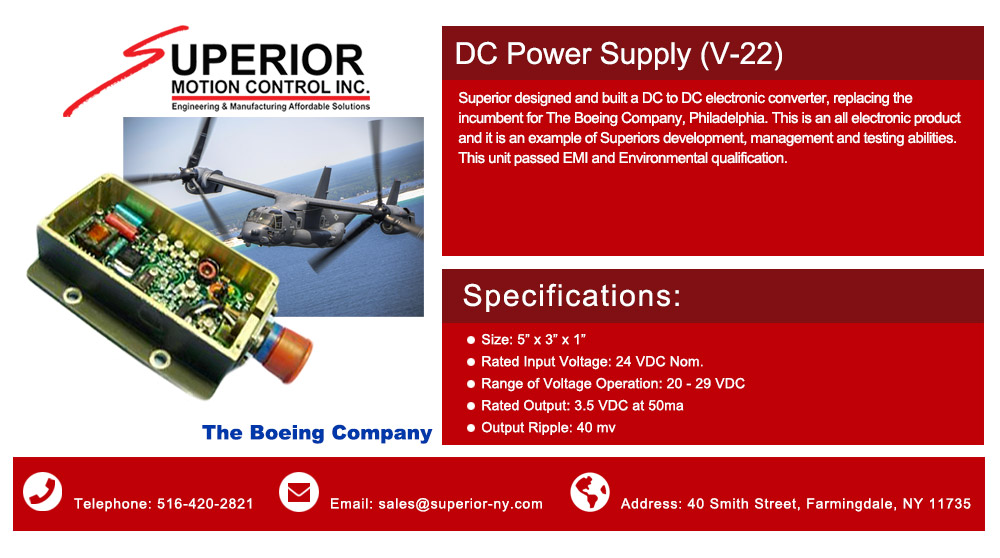

DC Power Supply (V-22)
Click Here:
Superior designed and built a DC to DC electronic converter, replacing the incumbent for The Boeing Company, Philadelphia.
This is an all electronic product and it is an example of Superiors development, management and testing abilities. This unit passed EMI and Environmental qualification.
Specifications:
This is an all electronic product and it is an example of Superiors development, management and testing abilities. This unit passed EMI and Environmental qualification.
Specifications:
- Size: 5” x 3” x 1”
- Rated Input Voltage: 24 VDC Nom.
- Range of Voltage Operation: 20 - 29 VDC
- Rated Output: 3.5 VDC at 50ma
- Output Ripple: 40 mv

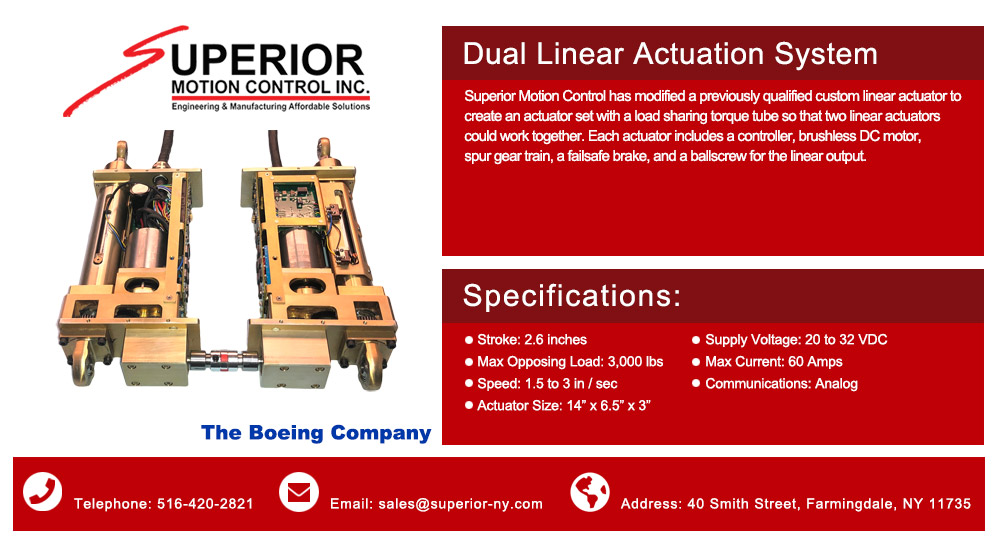

Dual Linear Actuator System
Click Here:
Superior Motion Control has modified a previously qualified custom linear actuator to create an actuator set with a load sharing torque tube so that two linear actuators could work together.
Each actuator includes a controller, brushless DC motor, spur gear train, a failsafe brake, and a ballscrew for the linear output.
Specifications:
Each actuator includes a controller, brushless DC motor, spur gear train, a failsafe brake, and a ballscrew for the linear output.
Specifications:
- Stroke: 2.6 inches
- Max Opposing Load: 3,000 lbs
- Speed: 1.5 to 3 in / sec
- Actuator Size: 14” x 6.5” x 3”
- Supply Voltage: 20 to 32 VDC
- Max Current: 60 Amps
- Communications: Analog
