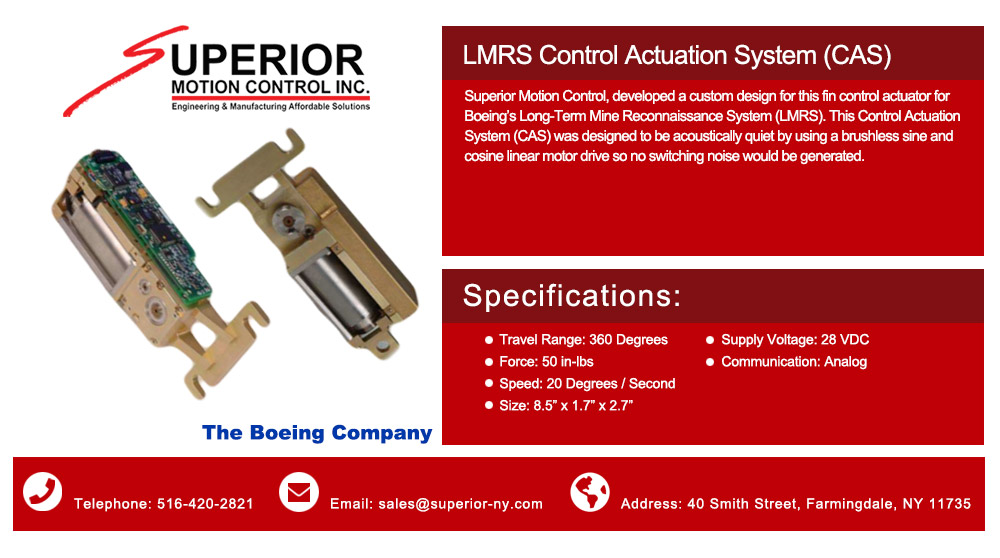

LMRS Control Actuation System
Click Here:
Superior Motion Control, developed a custom design for this fin control actuator for Boeing’s Long-Term Mine Reconnaissance System (LMRS).
This Control Actuation System (CAS) was designed to be acoustically quiet by using a brushless sine and cosine linear motor drive so no switching noise would be generated.
Specifications:
This Control Actuation System (CAS) was designed to be acoustically quiet by using a brushless sine and cosine linear motor drive so no switching noise would be generated.
Specifications:
- Travel Range: 360 Degrees
- Force: 50 in-lbs
- Speed: 20 Degrees / Second
- Size: 8.5” x 1.7” x 2.7”
- Supply Voltage: 28 VDC
- Communication: Analog

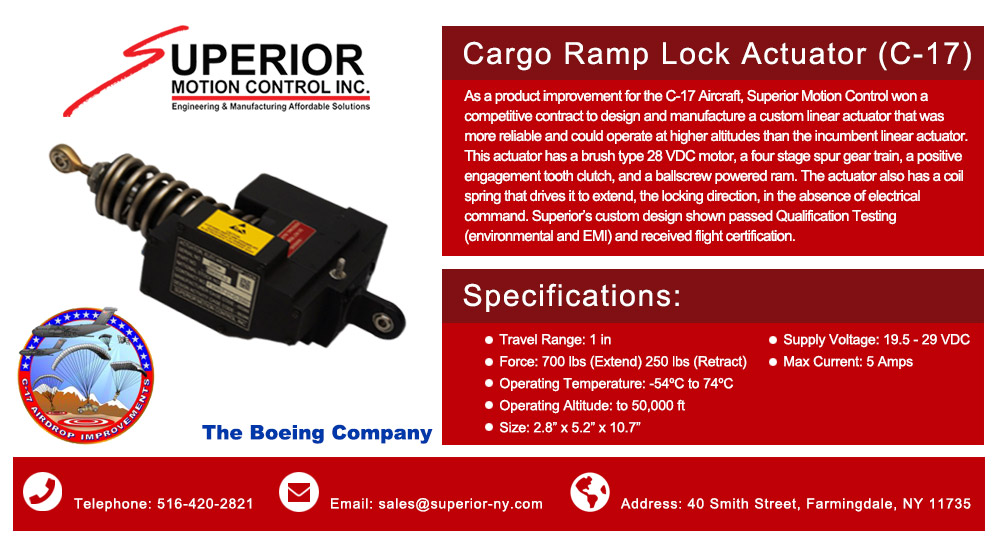

Cargo Ramp Lock Actuator (C-17)
Click Here:
As a product improvement for the C-17 Aircraft, Superior Motion Control won a competitive contract to design and manufacture a custom linear actuator that was more reliable and could operate at higher altitudes than the incumbent linear actuator.
This actuator has a brush type 28 VDC motor, a four stage spur gear train, a positive engagement tooth clutch, and a ballscrew powered ram.
The actuator also has a coil spring that drives it to extend, the locking direction, in the absence of electrical command.
Superior’s custom design shown passed Qualification Testing (environmental and EMI) and received flight certification.
Specifications:
This actuator has a brush type 28 VDC motor, a four stage spur gear train, a positive engagement tooth clutch, and a ballscrew powered ram.
The actuator also has a coil spring that drives it to extend, the locking direction, in the absence of electrical command.
Superior’s custom design shown passed Qualification Testing (environmental and EMI) and received flight certification.
Specifications:
- Travel Range: 1 in
- Force: 700 lbs (Extend) 250 lbs (Retract)
- Operating Temperature: -54ºC to 74ºC
- Operating Altitude: to 50,000 ft
- Size: 2.8” x 5.2” x 10.7”
- Supply Voltage: 19.5 - 29 VDC
- Max Current: 5 Amps

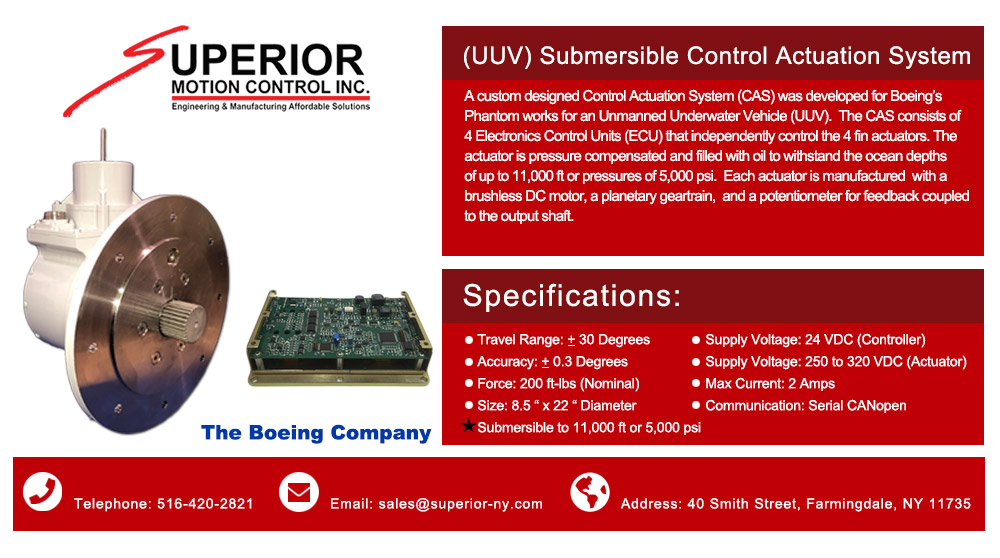

(UUV) Submersible Control Actuation System
Click Here:
A custom designed Control Actuation System (CAS) was developed for Boeing’s Phantom works for an Unmanned Underwater Vehicle (UUV).
The CAS consists of 4 Electronics Control Units (ECU) that independently control the 4 fin actuators.
The actuator is pressure compensated and filled with oil to withstand the ocean depths of up to 11,000 ft or pressures of 5,000 psi.
Each actuator is manufactured with a brushless DC motor, a planetary geartrain, and a potentiometer for feedback coupled to the output shaft.
Specifications:
The CAS consists of 4 Electronics Control Units (ECU) that independently control the 4 fin actuators.
The actuator is pressure compensated and filled with oil to withstand the ocean depths of up to 11,000 ft or pressures of 5,000 psi.
Each actuator is manufactured with a brushless DC motor, a planetary geartrain, and a potentiometer for feedback coupled to the output shaft.
Specifications:
- Travel Range: + 30 Degrees
- Accuracy: + 0.3 Degrees
- Force: 200 ft-lbs (Nominal)
- Size: 8.5 “ x 22 “ Diameter
- Submersible to 11,000 ft or 5,000 psi
- Supply Voltage: 24 VDC (Controller)
- Supply Voltage: 250 to 320 VDC (Actuator)
- Max Current: 2 Amps
- Communication: Serial CANopen
High Speed Linear Actuator
Click Here:
Superior Motion Control, designed, manufactured and qualified this custom electromechanical linear actuator.
The custom design includes a controller, brushless DC motor, spur gear train, manual drive, a fail safe brake and a ballscrew.
The linear actuator was qualified to meet EMI and environmental aircraft requirements per MIL-STD-461 and MIL-STD-810.
Specifications:
The custom design includes a controller, brushless DC motor, spur gear train, manual drive, a fail safe brake and a ballscrew.
The linear actuator was qualified to meet EMI and environmental aircraft requirements per MIL-STD-461 and MIL-STD-810.
Specifications:
- Stroke: 3.8 inches
- Max Load: 1400 lbs
- Speed: 5 in / second
- Size: 14” x 6.5” x 3”
- Supply Voltage: 28 VDC
- Max Current: 60 Amps
- Communication: Analog

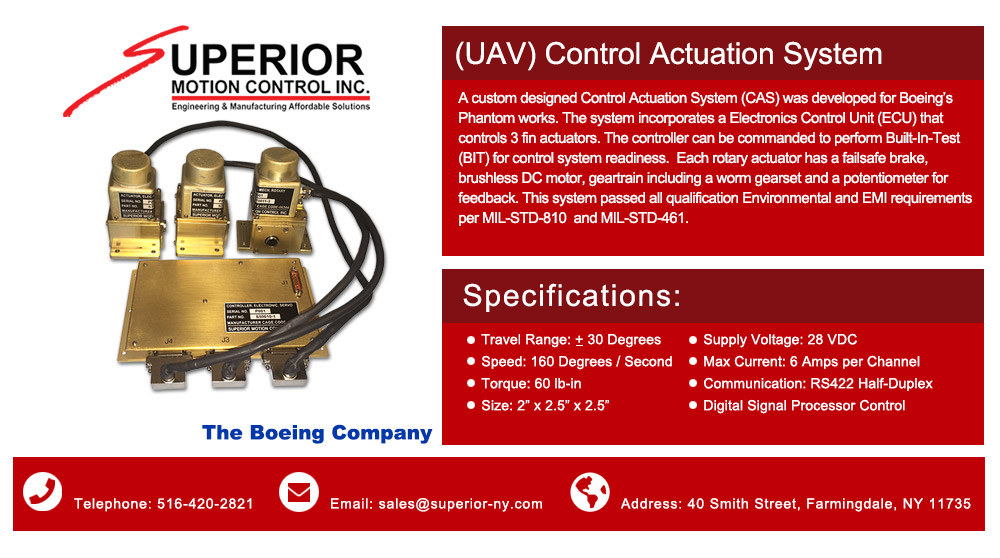

(UAV) Control Actuation System
Click Here:
A custom designed Control Actuation System (CAS) was developed for Boeing’s Phantom works.
The system incorporates a Electronics Control Unit (ECU) that controls 3 fin actuators.
The controller can be commanded to perform Built-In-Test (BIT) for control system readiness.
Each rotary actuator has a failsafe brake, brushless DC motor, geartrain including a worm gearset and a potentiometer for feedback.
This system passed all qualification Environmental and EMI requirements per MIL-STD-810 and MIL-STD-461.
This is integral to the MK-57 Vertical Launch System (VLS).
Specifications:
The system incorporates a Electronics Control Unit (ECU) that controls 3 fin actuators.
The controller can be commanded to perform Built-In-Test (BIT) for control system readiness.
Each rotary actuator has a failsafe brake, brushless DC motor, geartrain including a worm gearset and a potentiometer for feedback.
This system passed all qualification Environmental and EMI requirements per MIL-STD-810 and MIL-STD-461.
This is integral to the MK-57 Vertical Launch System (VLS).
Specifications:
- Travel Range: + 30 Degrees
- Speed: 160 Degrees / Second
- Torque: 60 lb-in
- Size: 2” x 2.5” x 2.5”
- Supply Voltage: 28 VDC
- Max Current: 6 Amps per Channel
- Communication: RS422 Half-Duplex
- Digital Signal Processor Control
Dual Linear Actuator System
Click Here:
Superior Motion Control has modified a previously qualified custom linear actuator to create an actuator set with a load sharing torque tube so that two linear actuators could work together.
Each actuator includes a controller, brushless DC motor, spur gear train, a failsafe brake, and a ballscrew for the linear output.
Specifications:
Each actuator includes a controller, brushless DC motor, spur gear train, a failsafe brake, and a ballscrew for the linear output.
Specifications:
- Stroke: 2.6 inches
- Max Opposing Load: 3,000 lbs
- Speed: 1.5 to 3 in / sec
- Actuator Size: 14” x 6.5” x 3”
- Supply Voltage: 20 to 32 VDC
- Max Current: 60 Amps
- Communications: Analog

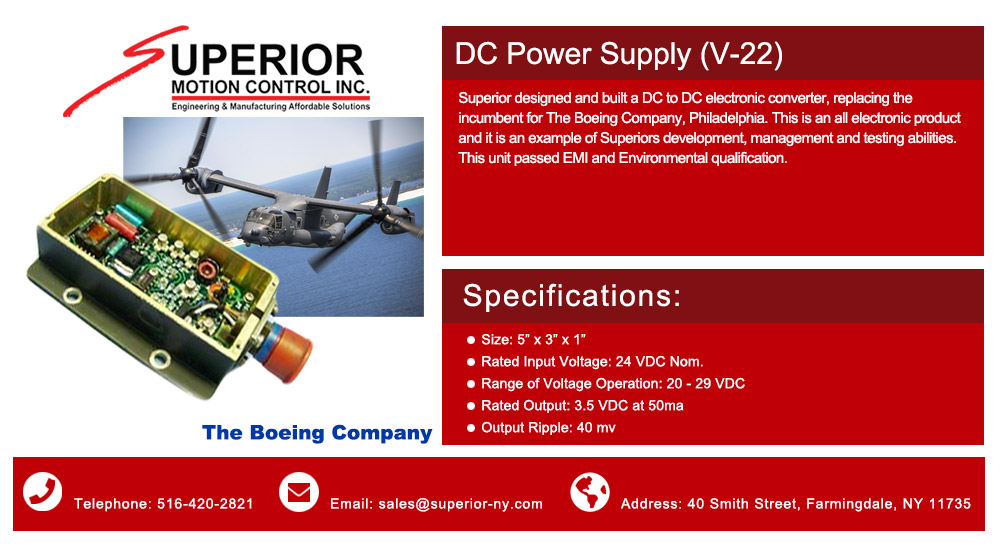

DC Power Supply (V-22)
Click Here:
Superior designed and built a DC to DC electronic converter, replacing the incumbent for The Boeing Company, Philadelphia.
This is an all electronic product and it is an example of Superiors development, management and testing abilities. This unit passed EMI and Environmental qualification.
Specifications:
This is an all electronic product and it is an example of Superiors development, management and testing abilities. This unit passed EMI and Environmental qualification.
Specifications:
- Size: 5” x 3” x 1”
- Rated Input Voltage: 24 VDC Nom.
- Range of Voltage Operation: 20 - 29 VDC
- Rated Output: 3.5 VDC at 50ma
- Output Ripple: 40 mv
