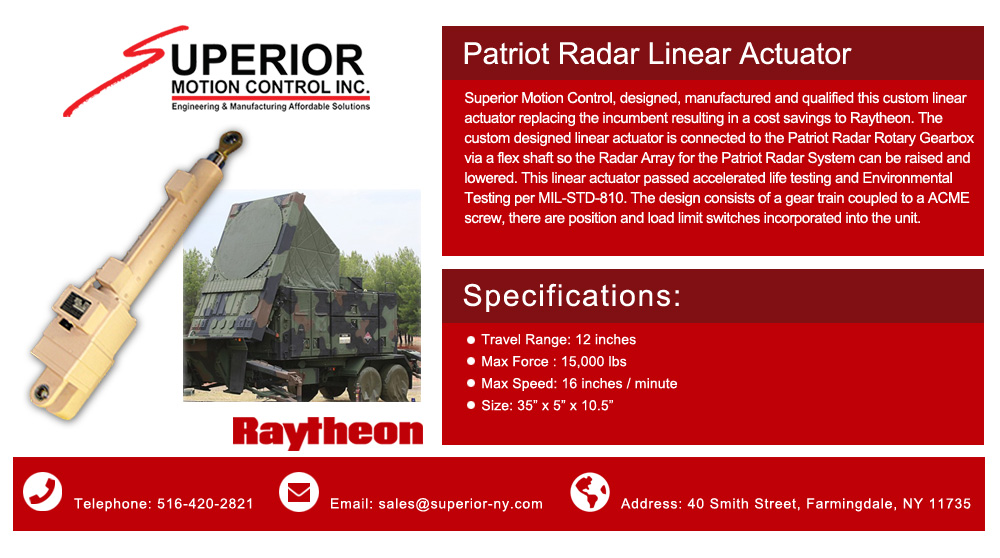

Patriot Radar Linear Actuator
Click Here:
Superior Motion Control, designed, manufactured and qualified this custom linear actuator replacing the incumbent resulting in a cost savings to Raytheon.
The custom designed linear actuator is connected to the Patriot Radar Rotary Gearbox via a flex shaft so the Radar Array for the Patriot Radar System can be raised and lowered.
This linear actuator passed accelerated life testing and Environmental Testing per MIL-STD-810.
The design consists of a gear train coupled to an ACME screw, there are position and load limit switches incorporated into the unit.
Specifications:
The custom designed linear actuator is connected to the Patriot Radar Rotary Gearbox via a flex shaft so the Radar Array for the Patriot Radar System can be raised and lowered.
This linear actuator passed accelerated life testing and Environmental Testing per MIL-STD-810.
The design consists of a gear train coupled to an ACME screw, there are position and load limit switches incorporated into the unit.
Specifications:
- Travel Range: 12 inches Max
- Force : 15,000 lbs
- Max Speed: 16 inches / minute
- Size: 35” x 5” x 10.5”
Patriot Louver Actuator
Click Here:
Superior Motion Control, designed, manufactured and qualified this custom electromechanical linear actuator replacing the incumbent resulting in a cost savings to Raytheon.
This electromechanical linear actuator passed accelerated life testing and Environmental Testing per MIL-STD-810.
The design consists of an AC induction motor connected to a 3 pass spur gear train, driving an ACME screw with position indicating switches.
Specifications:
This electromechanical linear actuator passed accelerated life testing and Environmental Testing per MIL-STD-810.
The design consists of an AC induction motor connected to a 3 pass spur gear train, driving an ACME screw with position indicating switches.
Specifications:
- Travel Range: 1 inch
- Max Force : 25 lbs
- Speed: 0.25 inches / second
- Size: 1” x 2” x 5”
- Supply Voltage: 3 Phase 208 VAC
- Frequency: 400 Hz
- Max Current: 0.2 Amps

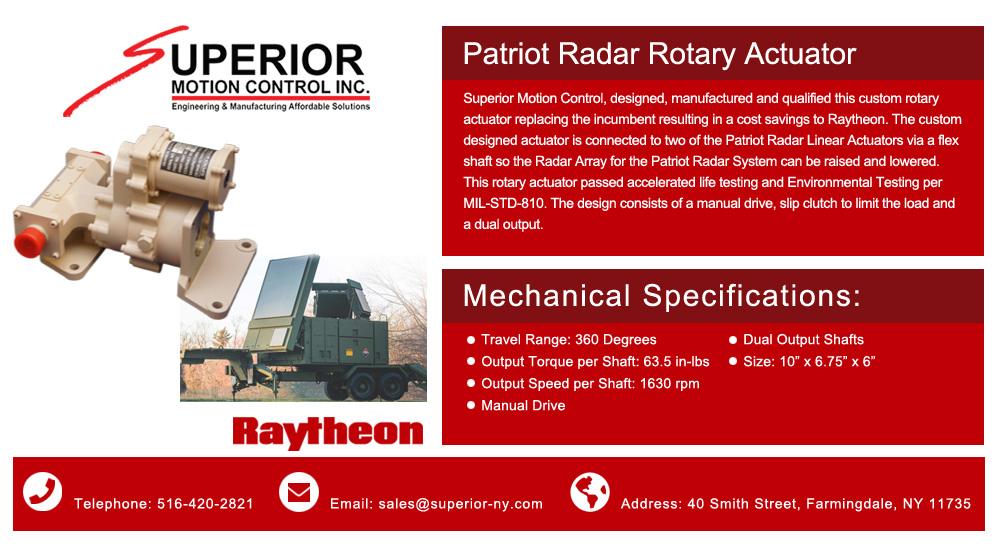

Patriot Radar Rotary Actuator
Click Here:
Superior Motion Control, designed, manufactured and qualified this custom rotary actuator replacing the incumbent resulting in a cost savings to Raytheon.
The custom designed actuator is connected to two of the Patriot Radar Linear Actuators via a flex shaft so the Radar Array for the Patriot Radar System can be raised and lowered.
This rotary actuator passed accelerated life testing and Environmental Testing per MIL-STD-810.
The design consists of a manual drive, slip clutch to limit the load and a dual output.
Specifications:
The custom designed actuator is connected to two of the Patriot Radar Linear Actuators via a flex shaft so the Radar Array for the Patriot Radar System can be raised and lowered.
This rotary actuator passed accelerated life testing and Environmental Testing per MIL-STD-810.
The design consists of a manual drive, slip clutch to limit the load and a dual output.
Specifications:
- Travel Range: 360 Degrees
- Output Torque per Shaft: 63.5 in-lbs
- Output Speed per Shaft: 1630 rpm
- Manual Drive
- Dual Output Shafts
- Size: 10” x 6.75” x 6”

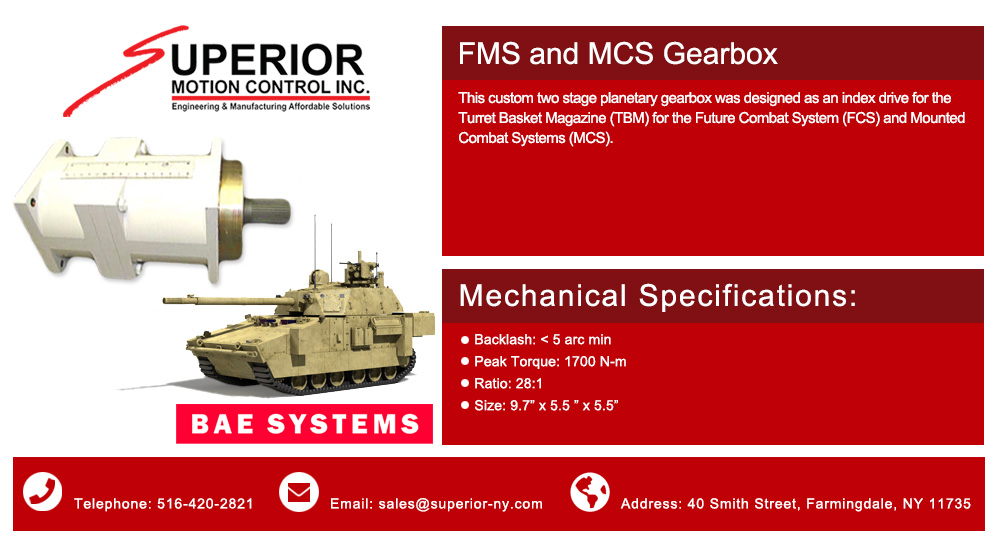

FMS and MCS Gearbox
Click Here:
This custom two stage planetary gearbox was designed as an index drive for the Turret Basket Magazine (TBM) for the Future Combat System (FCS) and Mounted Combat Systems (MCS).
Specifications:
Specifications:
- Backlash: < 5 arc min
- Peak Torque: 1700 N-m
- Ratio: 28:1
- Size: 9.7” x 5.5 ” x 5.5”

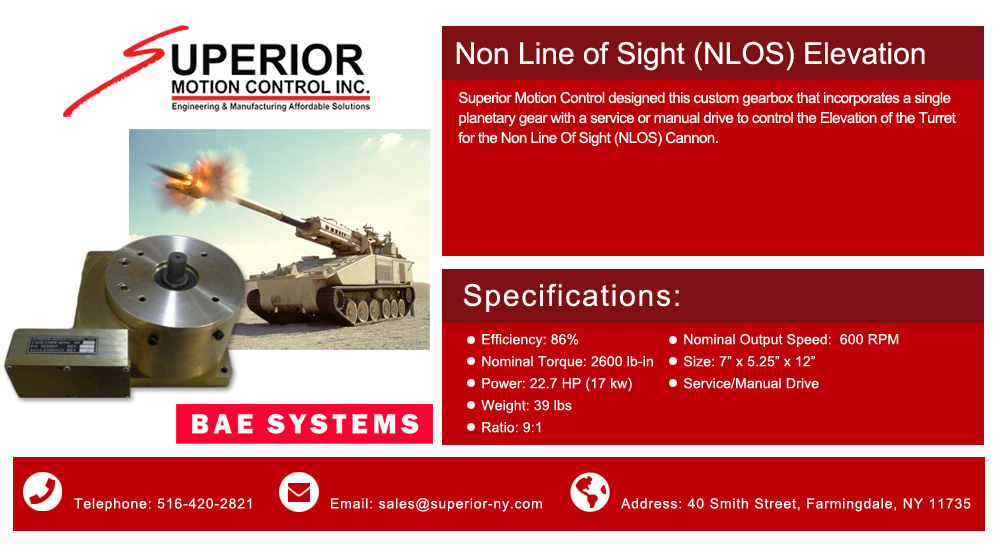

Non Line of Sight (NLOS) Elevation
Click Here:
Superior Motion Control designed this custom gearbox that incorporates a single planetary gear with a service or manual drive to control the Elevation of the Turret for the Non Line Of Sight (NLOS) Cannon.
Specifications:
Specifications:
- Efficiency: 86%
- Nominal Torque: 2600 lb-in
- Power: 22.7 HP (17 kw)
- Weight: 39 lbs Ratio: 9:1
- Nominal Output Speed: 600 RPM
- Size: 7” x 5.25” x 12” Service/
- Manual Drive

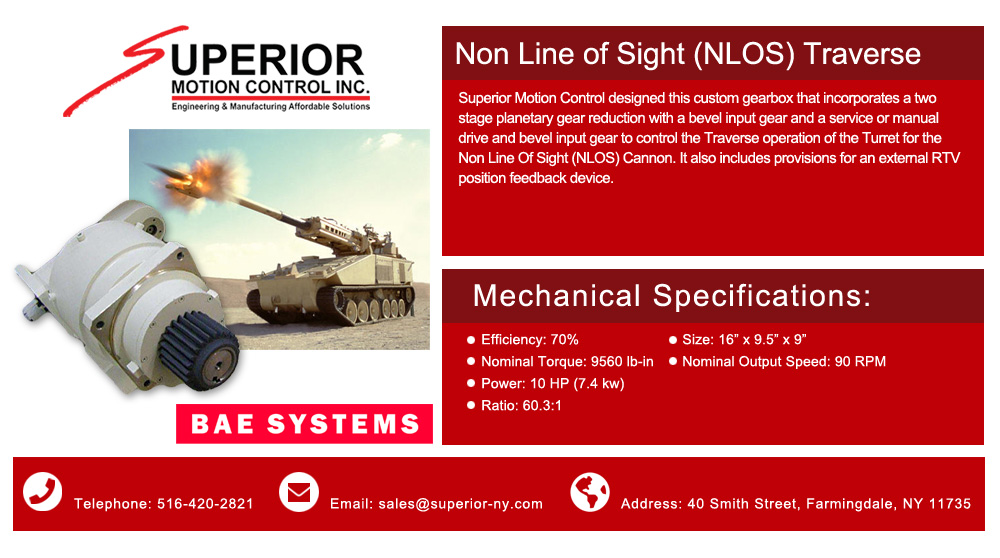

Non Line of Sight (NLOS) Traverse
Click Here:
Superior Motion Control designed this custom gearbox that incorporates a two stage planetary gear reduction with a bevel input gear and a service or manual drive and bevel input gear to control the Traverse operation of the Turret for the Non Line Of Sight (NLOS) Cannon.
It also includes provisions for an external RTV position feedback device.
Specifications:
It also includes provisions for an external RTV position feedback device.
Specifications:
- Efficiency: 70%
- Nominal Torque: 9560 lb-in
- Power: 10 HP (7.4 kw)
- Ratio: 60.3:1
- Size: 16” x 9.5” x 9”
- Nominal Output Speed: 90 RPM
